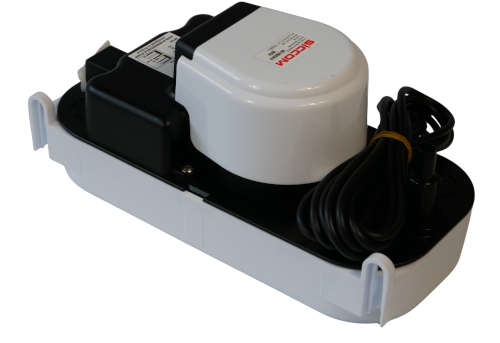

Eco Tank+ 1.2/2.5L

Centrifugal tank pump for the removal of condensates from air conditioners, refrigerated displays or gas condensing boilers.
Ref ECOTANK+ 1.2 50Hz: DE12QCC610
Ref ECOTANK+ 2.5 50Hz: DE25QCC620

Eco Tank 1.5L
Eco Tank 2.5L

Benefits

IP64 Protection

The pump is protected against water splashes.

Universal Electric Plug

Power/alarm cable can be taken off, making easy installation and maintenance.

Outlet for 6/9 or 9/12mm tube

Thanks to it’s connector supplied, the discharge can be made with a 6/9mm or a 9/12mm tube.

High Capacity Tank

Thanks to it’s 2.5 l tank, the ECOTANK+ 2.5 reduces the number of pumping cycles and answers to a great deal of applications.

Compact Tank Pump

With only 129mm height, the ECOTANK+ 1.2 fits easily in any space.

Reversible Tank

Turning the tank allows to fit in any configuration.

PVC Clear Tube Included (Only in 60HZ version)

A 6m discharge tube (10x13mm diameter) is included in the ECOTANK+ 2.5 60Hz version.

Specification

Flowrate Max:

800L/hr

Discharge Head:

5.6m

pH Tolerated:

pH > 2.5

Condensdates Max Temp:

60°C

Electrical Power:

65W

Voltage:

230V – 50Hz

Alarm:

NO-NC

Noise Level:

Protection Rating:

IP24

Thermal Protection:

Yes

Operating Cycle:

30%

Power/Alarm Cable:

1.5m

Tank Capacity:

170ml

Dimensions ECOTANK+1.2L:

280x130x129mm

Dimensions ECOTANK+2.5L:

280x130x159mm
